Medeek Project
1.2.4 - 08.04.2024
|
5450 installations
|
Introduction
Welcome to the documentation for the Medeek Project extension. Medeek Project is a SketchUp Extension that provides a simple interface for managing 3D geometry created by the mdkBIM Suite of extensions within SketchUp. This extension utilizes the SketchUp Ruby API programming interface and is compatible with the latest SketchUp releases (SketchUp Make 2017 64-bit and SketchUp Pro 2024 64-bit) as well as previous versions (2017, 2018, 2019, 2020, 2021, 2022, 2023).
What Can You Do with Medeek Project
Project Information:
- General Data
- Seismic (PDF) [ASCE7-10, ASCE7-16, ASCE7-22]
- Wind - (Under Construction) [Oct. 1, 2025]
- Snow - (Under Construction) [Nov. 1, 2025]
- Structural - (Under Construction) [Dec. 1, 2025]
- EOR
- AOR
- Toggle Visibility of Layers/Tags of the mdkBIM extensions [Truss, Wall, Foundation, Electrical and Custom]
- 2D Contstruction Grid [with major and minor grid lines and labels]
- Parametric Title Block within SketchUp
- Export Data as CSV (MS Excel)
- Project: Studs, Plates, Sheathing, Cladding, Gypsum, Windows, Doors, Garage Doors, Columns
- Roof Truss (Common, Monopitch): Sheathing, Drip Edge, Hip & Ridge
- Roof Rafter: Total length and Rafter Length Callouts (Under Construction)
- Foundation (SOG, Slab, Stemwall, Grade Beam): Concrete, Rebar, Anchor Bolts, Custom Rebar
- (Other Building Components and Elements: Under Construction)
- Cost and Weight (walls only)
- Trim Members: Single, Double or Triple Face
- Extend Members: Single Face
- Miter Cut Members
- Split Members: Single Face or Three Points

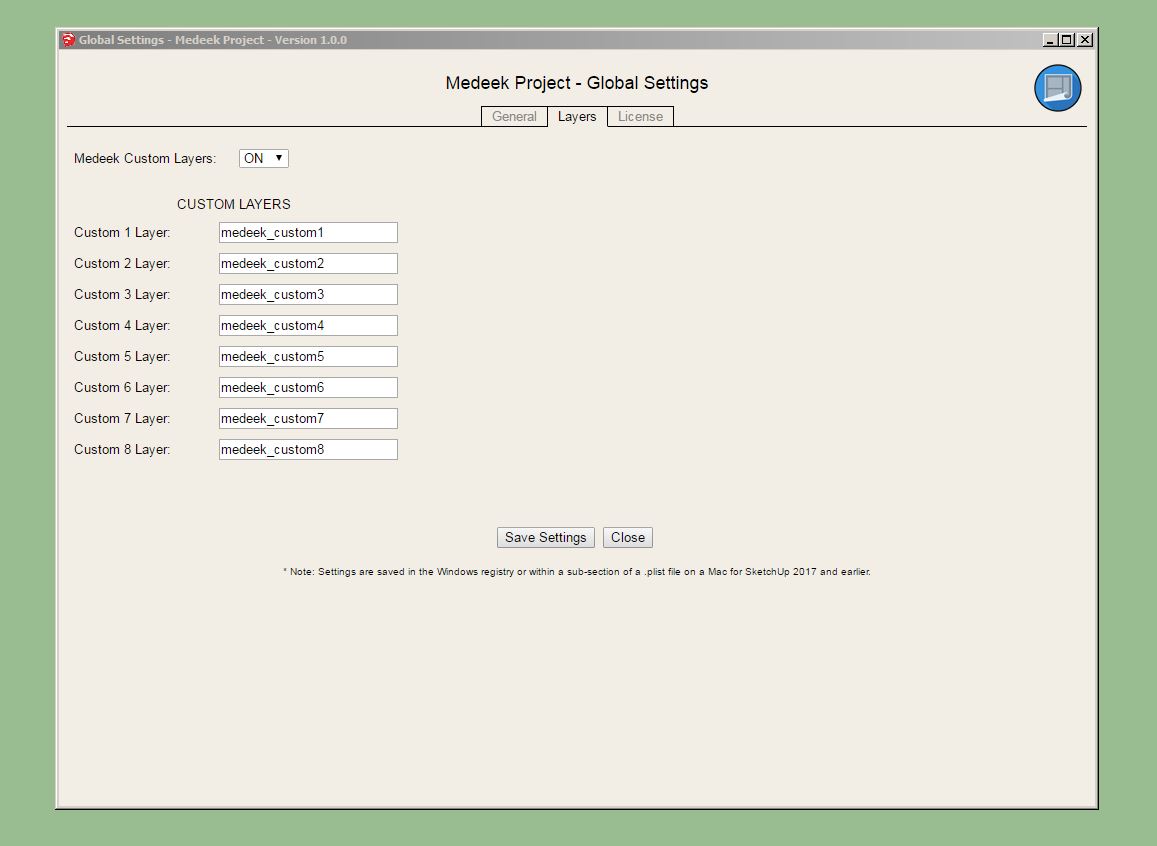

Custom layers can be enabled in the global settings of this extension which allow miscellaneous components to be placed on specific layers.
|
With Medeek Project, you can manage your geometry and BIM data that is created with all of the other Medeek extensions.
Engineering
The Medeek Project extension is in the process of being integrated with a fully automated residential engineering engine. This future feature will provide structural engineering of all typical components of a residential structure and will include both vertical and lateral calculations. For additional engineering tools and site criteria maps please visit our Resources page.
Audience
This document is intended for architects, engineers, designers and homeowners who are using SketchUp as their primary 3D design tool. It provides a basic introduction to using the extension and reference material on the available parameters/options for its use.
License and Limits of Use
Medeek Project is a proprietary softare developed for use with the SketchUp 3D modeling program. There are currently no limits in its use for both personal and commercial applications.
Download Trial
The trial version of the extension has all the features of the full extension. The trial version is also time limited to a thirty day period from the date of installation. Once the trial period has expired you will no longer be able to manage/modify or estimate projects.
If you are a material supplier or vendor interested in advertising or product placement within the extension please contact us at sales@medeek.com.
Please download the trial extension at the following link (extension serial number is "TRIAL"):
We strongly encourage downloading, installing and actually using the trial version of the extension prior to committing to the purchase of a license. This will allow you to accurately assess the capabilities of the extension and determine whether or not it fits within your workflow.
Permanent License
The permanent license or version of the extension is an unrestricted, full, and permanent license for both commercial and personal use. The number of installations per licensed copy is not limited, however the license can only be concurrently utilized on up to (3) separate machines.
Free upgrades to the latest version of the extension can be downloaded at any time, within one year of the purchase date, by logging into the Account Manager. Once the initial (one year) license period has expired the license can be renewed for ($10.00) on a yearly basis.
Please note, an active license is not required to continue to use the extension. The extension will continue to function even if the license expires. The only reason to renew your license is to gain access to recent upgrades to the extension and also enable unlimited phone and email support.
Please do not redistribute unlicensed copies of the extension. Download of the extension is available immediately after purchase.
Purchase Medeek Project ($20.00) at the following link:
Please login to the Account Manager to download the most up-to-date version of the extension.
If you purchase the extension through a qualified reseller you may be eligible for a discount off of the full purchase price. Please contact one our resellers for more details.
Subscription License
The subscription license or version of the extension is also an unrestricted full license for both commercial and personal use. The number of installations per licensed copy is not limited, however the license can only be concurrently utilized on up to (3) separate machines.
Please note, an active subscription/license is required to continue to use the extension. Once the subscription has expired the extension will not longer have full functionality and the purchase of a new subscription is required to continue to use the extension with its full capabilities.
An active subscription has access to the latest upgrades/version of the extension and can be downloaded at any time during the subscription period (1 year). An active subscription also includes unlimited phone and email support.
Purchase the Medeek Project Subscription ($10.00/year) at the following link:
mdkBIM
The mdkBIM suite combines all four extensions (Wall, Truss, Foundation and Project) into one convenient package that can be purchased at a fairly sizable discount. The mdkBIM suite includes the full permanent version of all four extensions and will also include any future add-on plugins or modules.
Free upgrades to the latest versions of all four extensions can be downloaded at any time, within one year of the initial purchase date, by logging into the Account Manager. Once the initial (one year) license period has expired the licenses for each extension are renewed separately at their current renewal prices.
Purchase the mdkBIM Extension Suite [Permanent License] ($280.00) at the following link:
Educational License
For professors, teachers, instructors and students requesting a fully functioning (educational) licensed copy of the extension(s) for educational use, please setup a Client Profile here and then send your request via email to support@medeek.com (please also include your Client ID that is generated when you have created your new client profile).
Once we have received your proof of enrollment (ie. Student ID Card) or other educational documention for instructors we will issue you a one time educational discount code which will allow you to purchase the mdkBIM suite (permanent license) at 10% of the regular price ($28.00).
Since most educational licenses are not intended to be a long term solution (for students) there is no educational (discounted) license renewal path, however one can renew any educational license just as one would renew a regular permanent license at the regular renewal pricing.
Permanent license renewals for instructors and teachers is handled on a case-by-case basis. Please contact support@medeek.com if you need to renew your instructor's educational license(s).
Refunds
You have 14 days from the date of purchase to request a refund for your Medeek subscription or permanent license. After 14 days, you cannot obtain a full or partial refund. All refunds are subject to a 5% restocking (transaction) fee.
Installation
The recent versions of SketchUp allow you to install zipped Ruby files or extensions (.rbz) directly within SketchUp.
To install the Medeek Wall extension (.rbz file format) within SketchUp 2017, 2018, 2019, 2020, 2021, 2022 and 2023:
- Login into your computer as an admin before installing any Ruby scripts. This will make the installation go more smoothly and ensure that files get installed in the proper places.
- Within SketchUp select Window > Extension Manager (Microsoft Windows) or SketchUp > Extension Manager (Mac OS X). The Extension Manager dialog box is displayed.
- Click on the Install Extension button. The Open dialog box is displayed.
- Locate the Ruby zip file to install (.rbz).
- Click on the Open button. SketchUp will install the extension and display a security prompt.
- The extension will display a prompt for your extension serial number (default value is "TRIAL") if this is a new installation.
- The Medeek Wall extension will now appear in the list of available extensions.
- Re-start SketchUp to enable the license and serial number and save the settings to the registry or .plist files on Mac.
* Note: If you have previously installed the trial version of the extension and are upgrading to the fully licensed version it is not necessary to re-install the extension. To activate the full version of the extension:

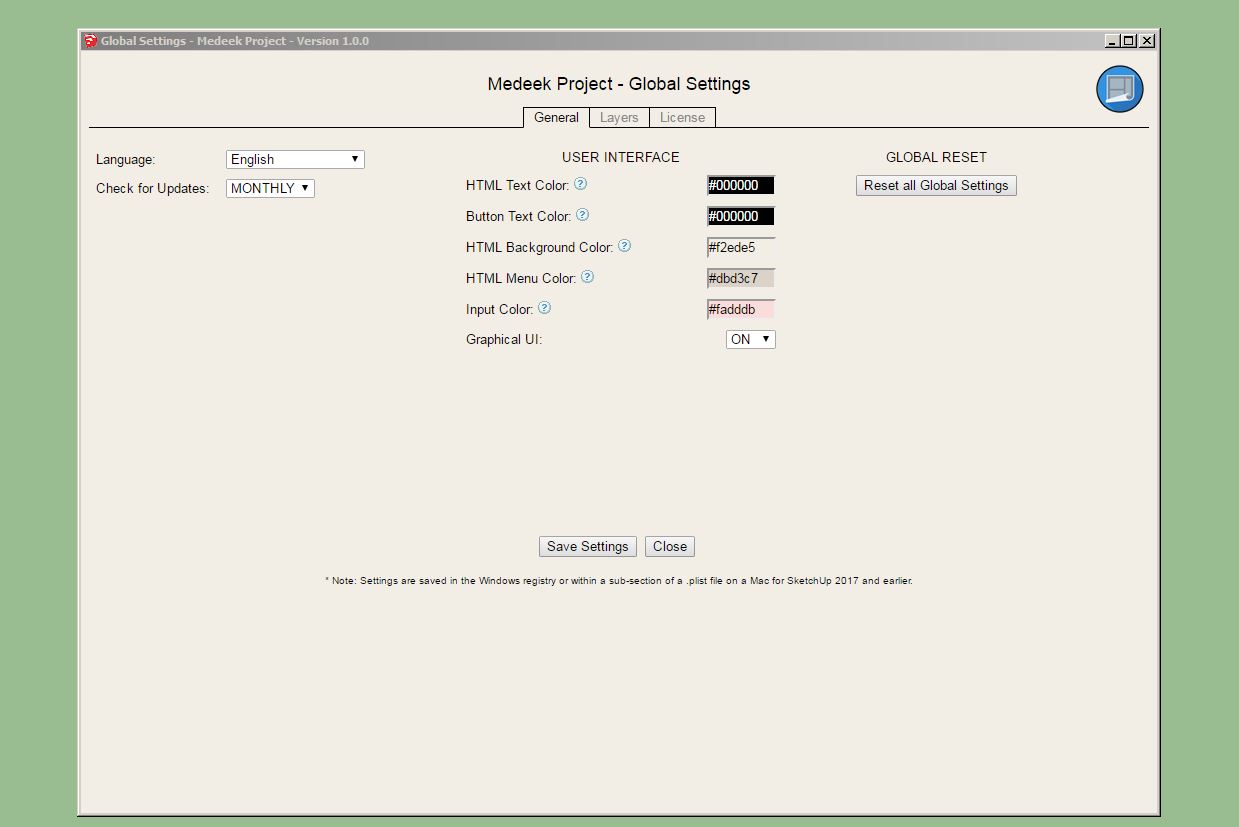

- Click on the Global Settings icon (three slider bars). The Global Settings menu is displayed.
- Click on the License Tab within the global settings. The License Tab menu is displayed with an input box for your serial number.
- Enter your serial number (case sensitive) and then click Save Settings button at the bottom of the menu. A popup message will appear confirming your license registration and the Medeek Seal will be displayed.
- Restart SketchUp for the license activation to fully take.
Upgrade
If you are a registered user, with an active license, you can obtain the latest version of the extension, at no additional charge, by logging in to the Account Manager. Click on the extension icon and then on your order number, if your order was placed within the last year then you will see a download button which will allow you to obtain the latest version. If your serial has expired since you purchased a license then a upgrade button will appear which will allow you to renew your license at a reduced rate for another year or purchase a new subscription.
Once you have downloaded the new release, completely uninstall the existing extension prior to installing the latest release (click the Manage tab within the Extension Manager to uninstall). Failure to completely remove the existing extension may cause some files to revert to the older version and impair the functionality of the extension.
Menu Items
The current Medeek Wall primary menu has six icons or sub-menus:
The available items are the following:
- Project Information:
- General Data
- Seismic (PDF) - [ASCE7-10, ASCE7-16, ASEC7-22]
- Wind - (Under Construction) [Apr. 1, 2023]
- Snow - (Under Construction) [May 1, 2023]
- Structural - (Under Construction) [Jul. 1, 2023]
- EOR
- AOR

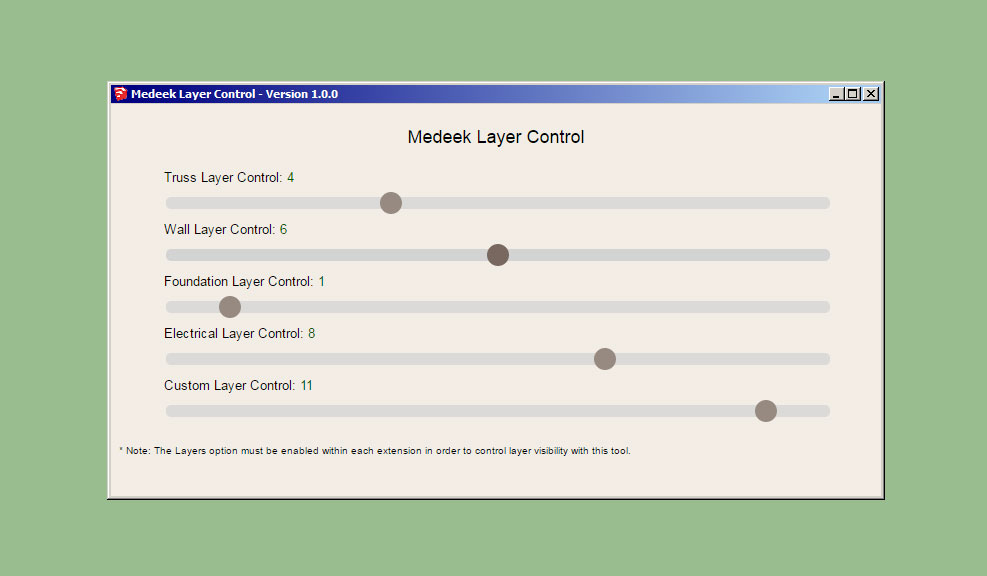

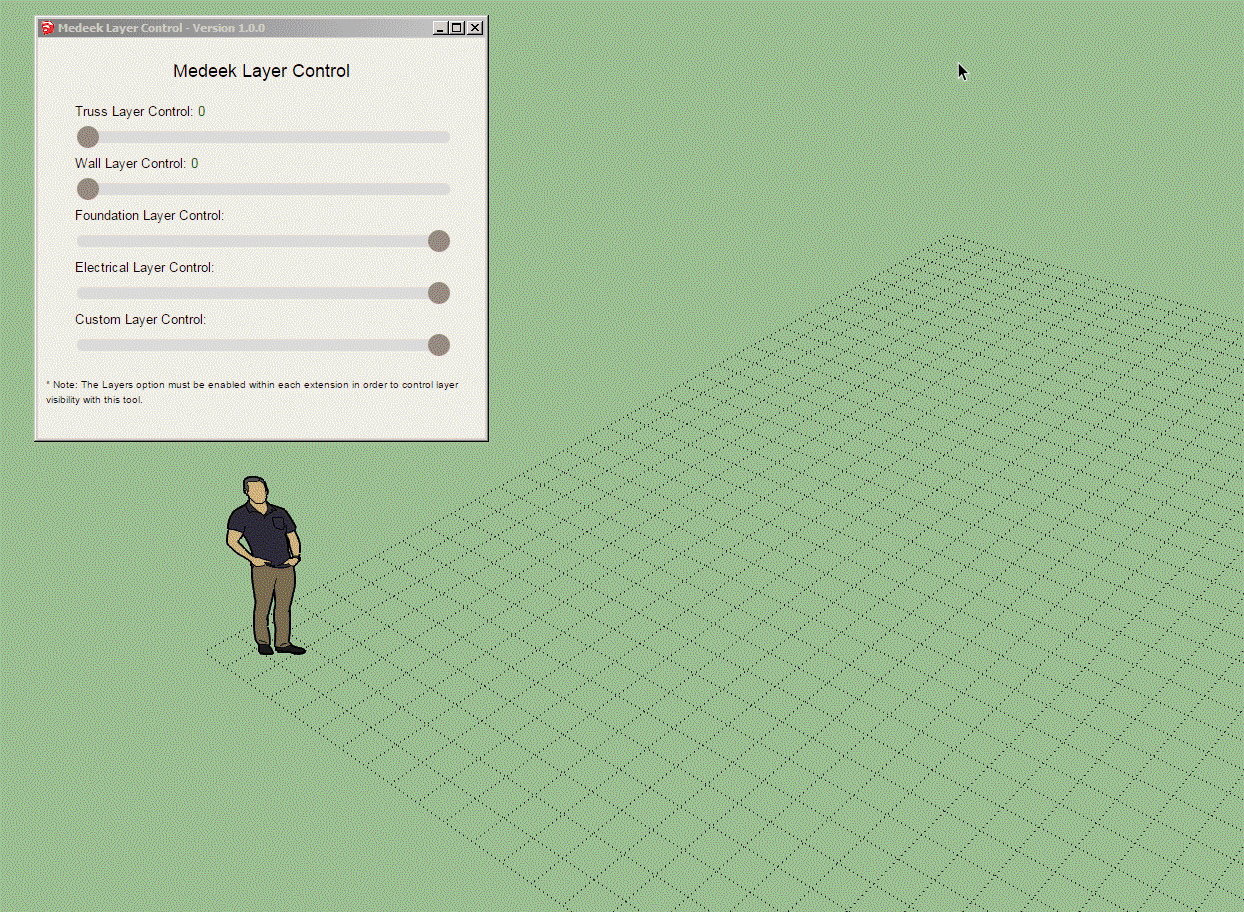

- Layer Control:
- Truss, Wall, Foundation, Electrical and Custom
- Grid Tool:
- 2D Constructon Grid
- Major and minor gridlines
- Labels for major gridlines (x-axis and/or y-axis)
- Title Block Tool:
- Parameter Title Block
- Draw within SketchUp
- Pulls information Project Info data (Customer, EOR, AOR)
- Estimating:
- CSV Export (MS Excel)
- Wall: Studs, Plates, Sheathing, Cladding, Gypsum, Windows, Doors, Garage Doors, Columns
- Roof Truss: Sheathing, Drip Edge, Hip & Ridge
- Foundation: Concrete, Rebar, Anchor Bolts
- (Other Items Under Construction)
- Change Global Settings:
- Section 1:
- General
- Layers: Custom Layers
- License
- Section 2:
- Documents (Under Construction)
- Estimating (Under Construction)
- Updates (Under Construction)
The Documents Toolbar has three icons or functions: - (Moved to the Medeek Projects Extension Jan. 11, 2023)
The available items are the following:
- Create Scenes [Framing Elevations]
- Export DXF (Under Construction)
- Export PDF (Under Construction)
The Medeek Tools Toolbar has six icons or functions:
The available items are the following:
- Trim (group and component) [trim with one face]
- Extend (group and component) [extend with one face]
- Trim 2 (group and component) [trim with two faces]
- Trim 3 (group and component) [trim with three faces]
- Miter Cut (group and component)
- Split (group and component) [split via one face or three points]
Video Tutorials
Previews of the extension during its recent development can be viewed here.
The following video tutorials are currently available on YouTube:
- mdkBIM Introduction - The Vision (20:58 min.)
- Tutorial 1 - Introduction (20:01 min.)
- Tutorial 2 - Title Blocks (16:33 min.)
- Tutorial 3 - Seismic Reports (9:28 min.)
- Tutorial 3 - Seismic Reports (9:28 min.)
- Tutorial 4 - Why SketchUp (26:43 min.)
- Tutorial 5 - Estimating Custom Rebar (12:15 min.)
The mdkBIM video tutorial series is also available on YouTube. These videos are typically longer than the standard tutorial videos and usually involve the modeling of an entire architectural structure with all of the mdkBIM extensions:
- mdkBIM Tutorial 1: Modeling a Two Car Detached Garage (41:14 min.)
- mdkBIM Tutorial 2 (Part 1): Garage 2826-2 (35:13 min.)
- mdkBIM Tutorial 2 (Part 2): Garage 2826-2 (48:50 min.)
Sample SketchUp models related to these tutorials and training sessions can be downloaded here.
Support
View the Medeek Project Manual (Under Construction) for detailed information on the extension and its usage.
Please contact support directly at: support@medeek.com
Language support is planned for the following languages: English, French, Spanish, German, Russian, Swedish, Japanese, Korean and Chinese (Simplified). Translation of the user inteface is currently under development.
Updates
The current version of Medeek Wall is 1.2.4 - revision date: 08.04.2024.
View the Medeek Project Changlog for more information on updates to this extension.
The extension will automatically check for an updated version once a month. The frequency of the "check for updates" can be set in the global settings or disabled entirely.
For a more in depth look at the development of the extension and related discussions please visit the Medeek Forum.
Download previous versions of the extension here.
WARNING: Medeek Project is currently and constantly under development. The user may encounter unintended behavior due to the addition of new features on a daily basis. Always backup your data to separate file names to provide redundancy in case of file corruption or other data loss scenarios.
If you have any questions or concerns about the Medeek Project extension please call us at 1-425-652-4188.
